2024 Latest Design 2kw Automatic Sun Tracking Controller System Dual Axis Solar Tracker Bracket

Short Description:

UNLOCKING THE POTENTIAL OF SOLAR ENERGY!


Product Detail

Product Tags

To meet the customers’ over-expected pleasure , we’ve our sturdy group to offer our best overall service which incorporates advertising and marketing, product sales, designing, production, good quality managing, packing, warehousing and logistics for 2024 Latest Design 2kw Automatic Sun Tracking Controller System Dual Axis Solar Tracker Bracket, While using the improvement of society and economy, our enterprise will hold a tenet of “Focus on trust, high quality the first”, moreover, we count on to make a glorious long run with each and every customer.
To meet the customers’ over-expected pleasure , we’ve our sturdy group to offer our best overall service which incorporates advertising and marketing, product sales, designing, production, good quality managing, packing, warehousing and logistics for China Solar Tracker and Solar Tracking Controller, Immediate and expert after-sale service supplied by our consultant group has happy our buyers. Detailed Info and parameters from the merchandise will probably be sent for you for any comprehensive acknowledge. Free samples may be delivered and company check out to our corporation. n Morocco for negotiation is constantly welcome. Hope to get inquiries type you and construct a long-term co-operation partnership.

UNLOCKING THE POTENTIAL OF SOLAR ENERGY!
Dual-axis trackers allow achieving the maximum energy output!
Our GPS-equipped dual-axis trackers ensure full sun exposure every hour of every day of the year.
ZRD series full automatic dual axis solar tracking system is our patent product, it has two automatic axis to track the sun in east-west direction and south-north direction automatically. Increase your power generation by 30%-40%.

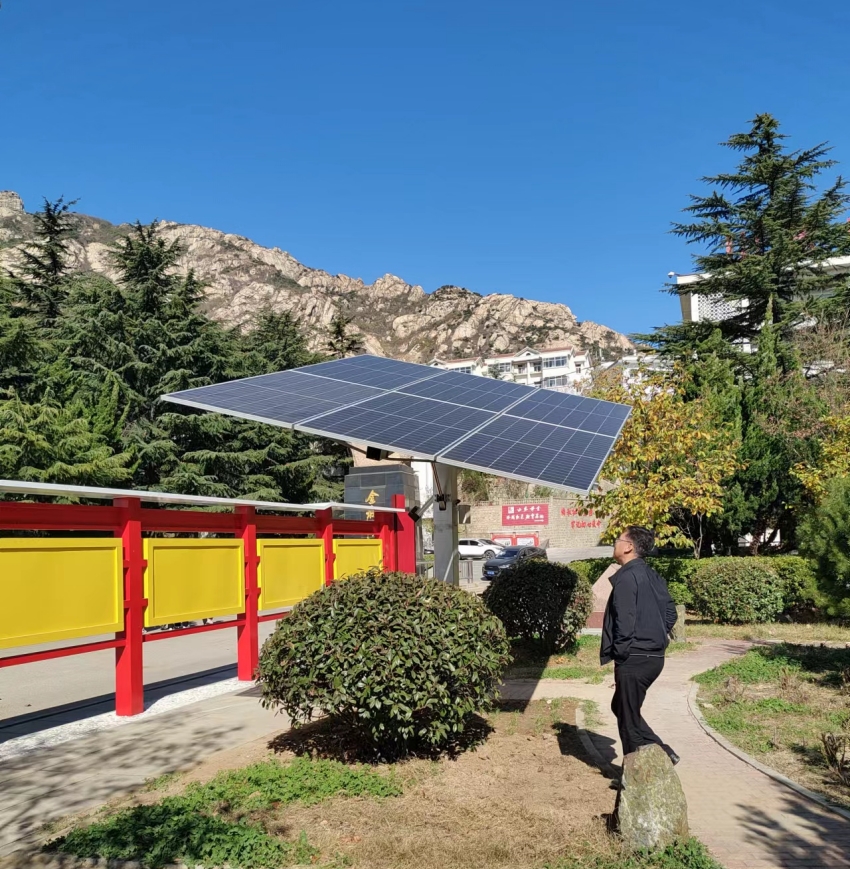

ZRD-06 model

ZRD-06 dual axis solar tracking system is one of the most popular models, it can support 6 pieces of solar panels. Total power can be from 2kW to 4.5kW. The solar panels are generally arranged 2 * 3 in portrait or landscape layout.
Maximize your solar energy production with our Dual Axis Solar Tracker. Designed to follow the sun’s path throughout the day, this innovative tracker optimizes panel orientation, ensuring peak efficiency and increased energy output. Experience enhanced performance and greater ROI with our reliable and versatile dual-axis tracking solution.

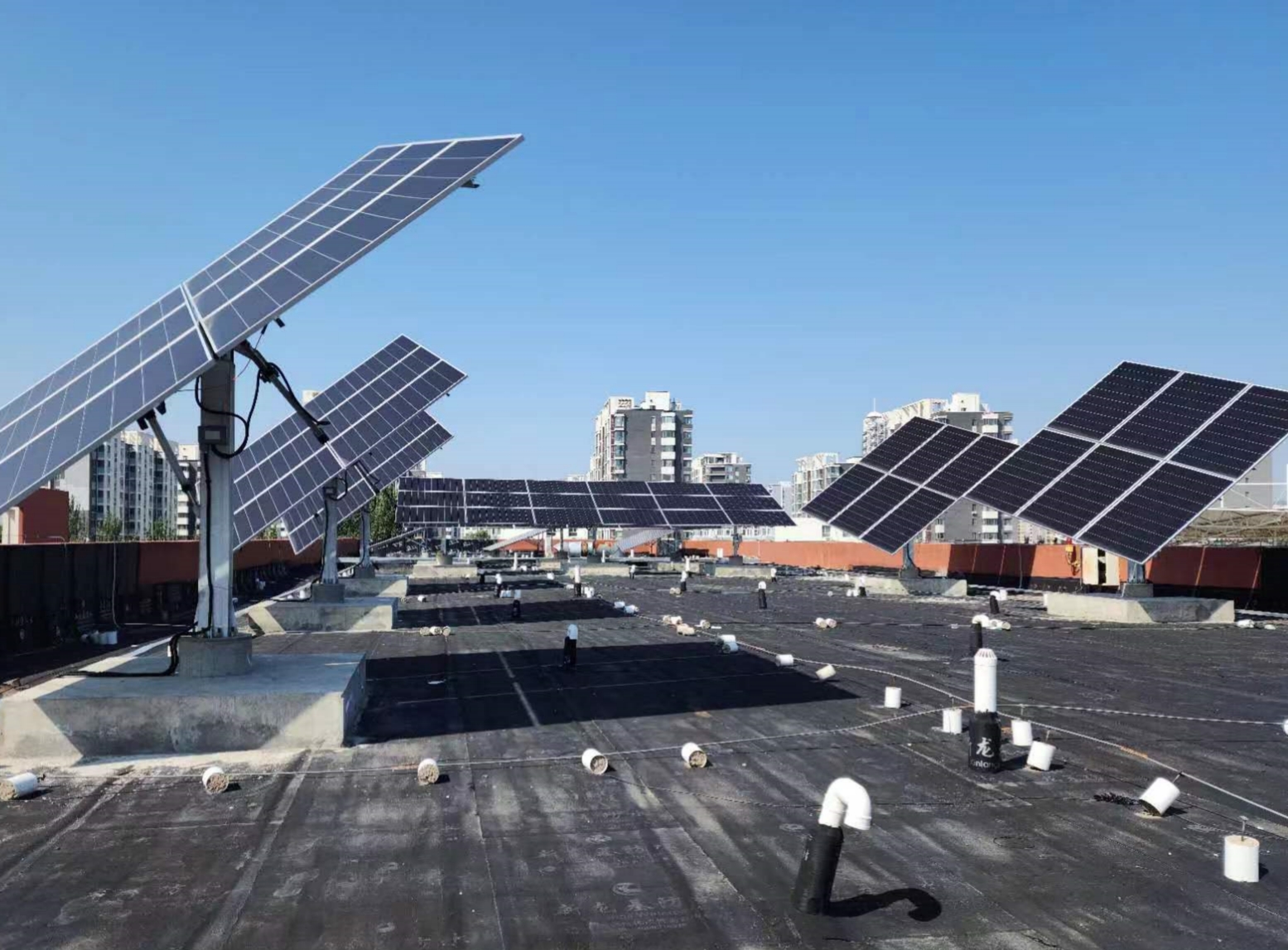

ZRD-06 on roof

With brushless and low-power consumption D/C motors, offering strong resistance to wind and vibration for enhanced stability and reliability. It is designed to withstand maximum wind speed of up to 40m/s. Close to horizontal wind stow strategy implemented helps to reduce wind pressure on the solar panels surface.
The ZRD-06 dual axis solar tracker can operate reliably in temperature ranging from -40℃ to +70℃, well adapted to the various typical harsh environments in solar plants.

Control mode

Time + GPS

Average tracking accuracy

0.1°- 2.0°(adjustable)

Gear motor

24V/1.5A

Output torque

5000 N·M

Tracking power consumption

<0.02kwh/day

Azimuth angle tracking range

±45°

Elevation angle tracking range

0°- 45°

Max. wind resistance in horizontal

40 m/s

Max. wind resistance in operation

>24 m/s

Material

Hot-dipped galvanized steel>65μm

Superdyma

System guarantee

3 years

Working temperature

 -40℃ — +75℃

Technical standard & certificate

CE 、TUV

Weight per set

170 KGS - 200 KGS

Total power per set

2.0kW – 4.5kW

To meet the customers’ over-expected pleasure , we’ve our sturdy group to offer our best overall service which incorporates advertising and marketing, product sales, designing, production, good quality managing, packing, warehousing and logistics for 2024 Latest Design 2kw Automatic Sun Tracking Controller System Dual Axis Solar Tracker Bracket, While using the improvement of society and economy, our enterprise will hold a tenet of “Focus on trust, high quality the first”, moreover, we count on to make a glorious long run with each and every customer.
2024 Latest Design China Solar Tracker and Solar Tracking Controller, Immediate and expert after-sale service supplied by our consultant group has happy our buyers. Detailed Info and parameters from the merchandise will probably be sent for you for any comprehensive acknowledge. Free samples may be delivered and company check out to our corporation. n Morocco for negotiation is constantly welcome. Hope to get inquiries type you and construct a long-term co-operation partnership.
